FIREMAGIC Grill Accessories / FIREMAGIC Doors and Drawers / FIREMAGIC Flush Mounted Doors & Drawers

FIREMAGIC

Flush Mounted Doors & Drawers

accessories-doors-and-drawers-flush-hero
accessories-doors-and-drawers-flush-hero

Doors and Drawers

Featuring heavy-duty handles with cast stainless steel mounts, these 304 stainless steel doors and drawers are designed to close flush with the frame using a strong magnetic latch. Flush Mounted Doors and Drawers are filled with polyurethane foam for insulation and a solid feel. A continuous rain guard protects from water getting into your custom enclosure. Available in a variation of door and drawer configurations and sizes. With so many options there is a combination available to meet any outdoor kitchen storage need. New Pantry sealed and gasketed Door/Drawer combos feature self-closing, magnetic seal drawers.

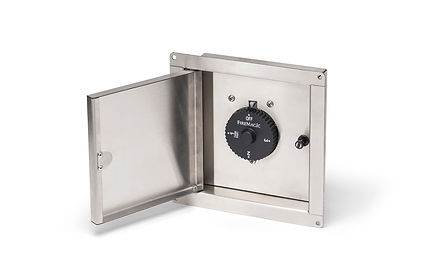

FM_5520-13T_Timer Box, 3-Hour, Open, Ang

Gas Timer Box

Perfect for built-In Fire Magic installations this built-in
timer automatically shuts off gas flow at pre-set times

1-hour (#5520-11T) and 3-Hour (#5520-13T) models
304 stainless steel construction
Convenient push-to-open magnetic access door
Built-in brass 1/2” male flared inlet and outlet fittings*
Cut-out dimensions: 6 ½” x 6 ½”
Overall dimensions with flange:7 ¾” W x 3 ¾” D x 7 ¾” H


Trash Cabinets

Dual Trash Cabinets include two 3.25 gallon trash bins (one blue, one black).  Featuring heavy-duty handles with cast stainless steel mounts, these 304 stainless steel doors and drawers are designed to close flush with the frame using a strong magnetic latch. Flush Mounted Doors and Drawers are filled with polyurethane foam for insulation and a solid feel. A continuous rain guard protects from water getting into your custom enclosure.



Trash Cabinet  #53820TSC
Black Diamond Trash Cabinet  #53820HTSC
Cut-out dimensions: 21”h x 14½”w x 19¼”d


Flush Mounted Double Doors with 2 Dual Drawers (shown)

Featuring heavy-duty handles with cast stainless steel mounts, these 304 stainless steel doors and drawers are designed to close flush with the frame using a strong magnetic latch. Flush Mounted Doors and Drawers are filled with polyurethane foam for insulation and a solid feel. A continuous rain guard protects from water getting into your custom enclosure. Available in a variation of door and drawer configurations and sizes. With so many options there is a combination available to meet any outdoor kitchen storage need.

New pantry sealed and gasketed Door/ Drawer combos feature self-closing, magnetic seal drawers.

Black Diamond Single Door


Model #: 53920HSC-L or -R
Cut-out: 21″h x 14 ½”w

Black Diamond Double Doors


Model #: 53938HSC
Cut-Out: 16″h x 39″w

Triple Drawer


Model #: 53803SC
Cut-Out: 26 ¼”h x 14 ½”w x 20 ½”d

FM_-53810S_-Flush-Mounted-Access-Door-wi

Door/ Drawer Combo


Model #: 53810SC
Cut-Out: 18 ½”h 30″w x 26″d

FM_-53820H-TSL_Black-Diamond-with-Tank-T

Black Diamond Double Door w/ Tank Tray and Louvers


Model #: 53820HSC-TL or -TR
Cut-Out: 21″h x 14 ½”w x 20 ½”d

FM_-53801_-Flush-Mounted-Single-Drawer.g

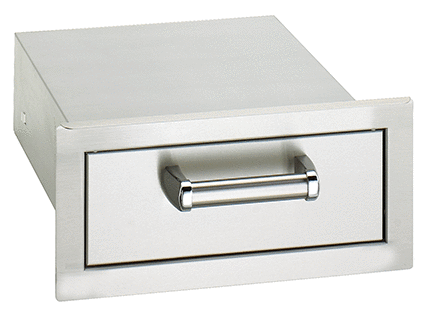

Single Drawer


Model #: 53801SC
Cut-out: 5 ¼”h x 14 ½”w x 20 ½”d

FM_-53930S-22_Flush-Mounted-Double-Doors

Double Drawer with 2 Dual

Drawer


53930SC-22
21″ x 30 ½” x 20 ½”

FM_53816S_Flush Mounted Access Door W_Pl

Door/ Drawer Combo (w/ platter storage)


Model #: 53816SC
Cut-Out: 18 ½”h x 36 ½”w x 26″d

FM_-RF_53802H_Black-Diamond-Double-Drawe

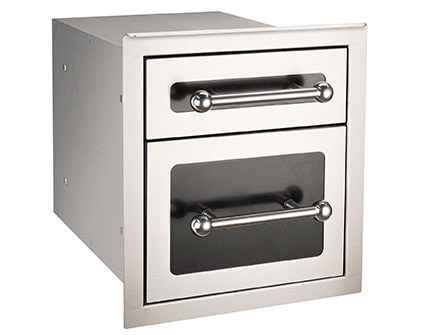

Black Diamond Double Drawer


Model #: 53802HSC
Cut-Out: 16″h x 14 ½”w x 20 ½”d

Double Drawer


Model #: 53802SC
Cut-Out: 16 ½”h x 14 ½”w x 20 ½”d

FM_53930S-12_Flush Mounted Double Doors

Double Doors with Trash Tray & Dual Drawers


53930SC-12
21″ x 30 ½” x 20 ½”

Electric Warming Drawer


Model #: 53830-SW
Cut-Out: 14 ½”h x 32 ¼”w x 22″d

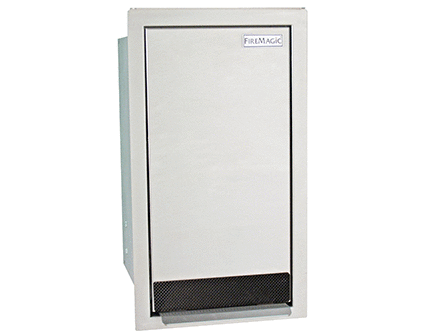

Trash Container


53825-T
24″ h x 12 3/4″ w x 20″ d

FM_53924-SL_Flush Mounted Single Access

Vertical Single Access Doors


Model Shown: 53920SC-L

FM_53917-SR_Flush Mounted Single Access

Horizontal Single Access Doors


Model Shown: 53917SC-R

Double Access Doors


Model Shown: 53934SC

Vertical Single Access Doors


Model #        Hinge        Cut-Out


53920SC-L     Right         21″h x 14 ½”w
53920SC-R     Left           21″h x 14 ½”w
53924SC-L     Right         25″h x 17 ½”w
53924SC-R     Left           25″h x 17 ½”w

Horizontal Single Access Doors


Model #       Hinge    Cut-Out


53914SC-L    Left      15″h x 20 ½”w
53914SC-R    Right    15″h x  20 ½”w
53917SC-L    Left      18″h x 24 ½”w
53917SC-R    Right    18″h x 24 ½”w

Horizontal Single Access Doors


Model #       Hinge    Cut-Out


53914SC-L    Left      15″h x 20 ½”w
53914SC-R    Right    15″h x  20 ½”w
53917SC-L    Left      18″h x 24 ½”w
53917SC-R    Right    18″h x 24 ½”w
