DOORS AND DRAWERS

Functional and organized storage is a valuable convenience of any well designed kitchen. Alfresco offers the most complete selection of matching doors, drawers, and creative combinations to help you design your perfectly planned outdoor kitchen.

Drawers pull out on soft-close German-engineered smooth-gliding heavy-duty
full-extension slides.

Optional doors interior system features an adjustable shelf, helping to organize and contain what goes under and into your island kitchen.

Sturdy dual-wall doors feature multiple mounting options and an adjustable accessory door bin. (door bin sold separately)

17″ SINGLE ACCESS DOOR

Left Door: AXE-17L

Right Door: AXE-17R

Cut Out Dimensions:

Height 18 1/2"

Width 13 7/8"

23″ SINGLE ACCESS DOOR

Left Door: AXE-23L

Right Door: AXE-23R

Cut Out Dimensions:

Height 18 1/2"

Width 19 7/8"

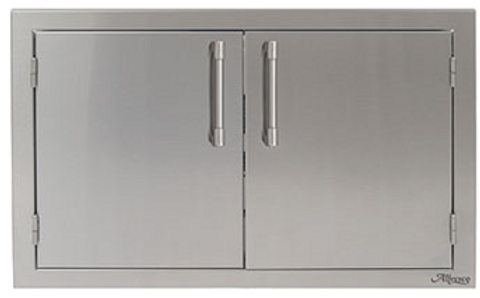

DOUBLE ACCESS DOORS

30″ Wide Doors: AXE-30

Cut Out Dimensions:

Height 18 1/2"

Width 27 1/4"

36″ Wide Doors: AXE-36

Cut Out Dimensions:

Height 18 1/2"

Width 33 1/4"

42″ Wide Doors: AXE-42

Cut Out Dimensions:

Height 18 1/2"

Width 39 1/4"

STORAGE DRAWERS

Two Drawer Unit: AXE-2DR

Cut Out Dimensions:

Height 12 1/4"

Width 14 5/8"

STORAGE DRAWERS

Three Drawers: AXE-3DR

Cut Out Dimensions:

Height 18 5/8"

Width 14 5/8"

30″ STORAGE DRAWER

Oversized for Large Pans: AXE-30DR

Cut Out Dimensions:

Height 14"

Width 27 3/4"

32″ COMBO DOOR & DRAWERS

Door on Left or Right: AXE-DDC-SC

Cut Out Dimensions:

Height 18 5/8"

Width 29 3/8"

DOOR/DRAWER COMBO

Handle on Left: AXE-DDR-L

Handle on Right: AXE-DDR-R

Cut Out Dimensions:

Height 26 1/4"

Width 14 3/8"

PAPER TOWEL HOLDER

For Standard Paper Towel Rolls: AXE-TH

Cut Out Dimensions:

Height 8 1/2"

Width 14 1/2"

DOOR/PAPER TOWEL HOLDER

Handle on Left: AXE-DTH-L

Handle on Right: AXE-DTH-R

Cut Out Dimensions:

Height 26 1/4"

Width 14 3/8"

TRASH CENTER

Single Bin: AXE-TC-SC

Cut Out Dimensions:

Height 26 1/4"

Width 12 1/2"

Double Bin: AXE-TC2D-SC

Cut Out Dimensions:

Height 26 1/4"

Width 17 1/4"

Includes durable plastic receptacle(s)

DOOR BIN

XEDS-1 for 17″ Door

XEDS-2 for 23″ Door

XEDS-3 for 30″ Double Doors

(Ask your dealer for sizing details)

DOORS INTERIOR

AXE-17E
AXE-23E
AXE-30E

AXE-36E
AXE-42E


(Sold separately)
